NEW Schaefer BD72-208460-3 72" BigDog Circulation Fan (NO DELFECTORS, FAN ONLY)

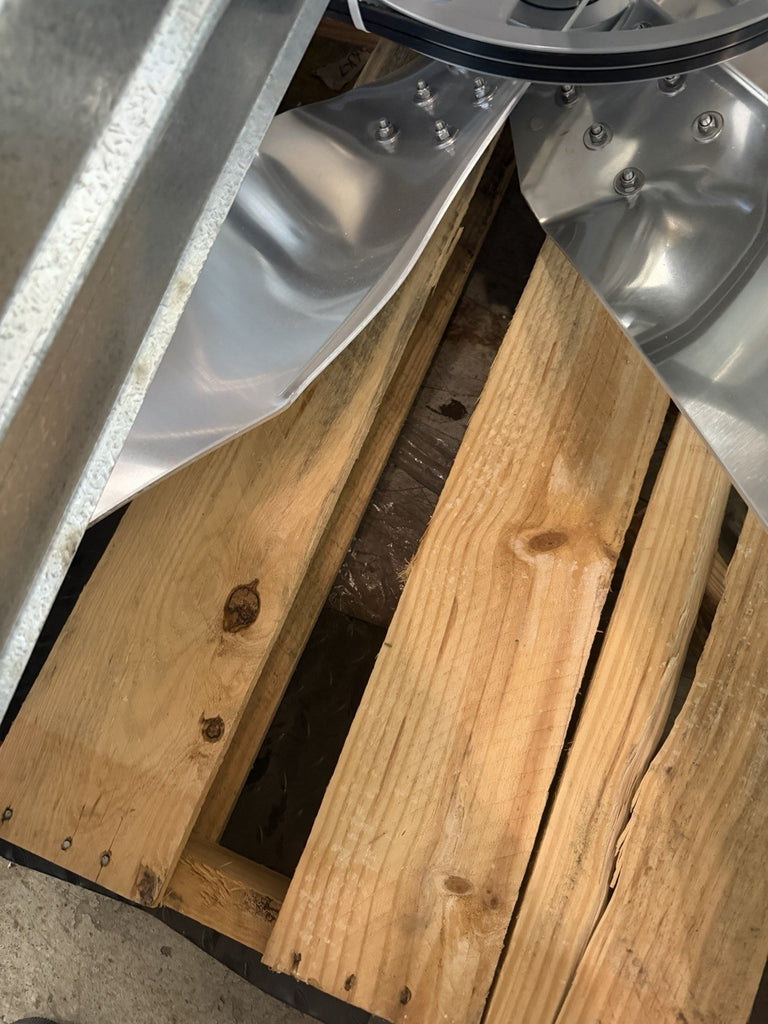

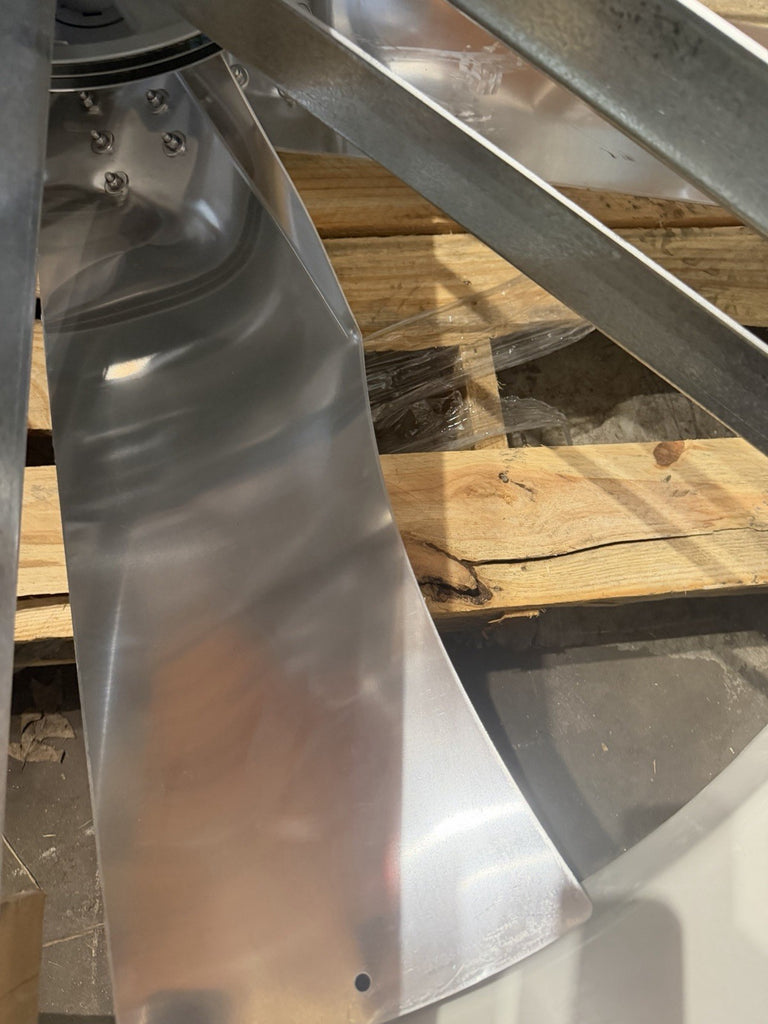

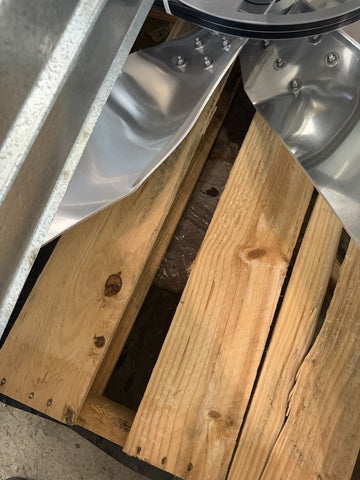

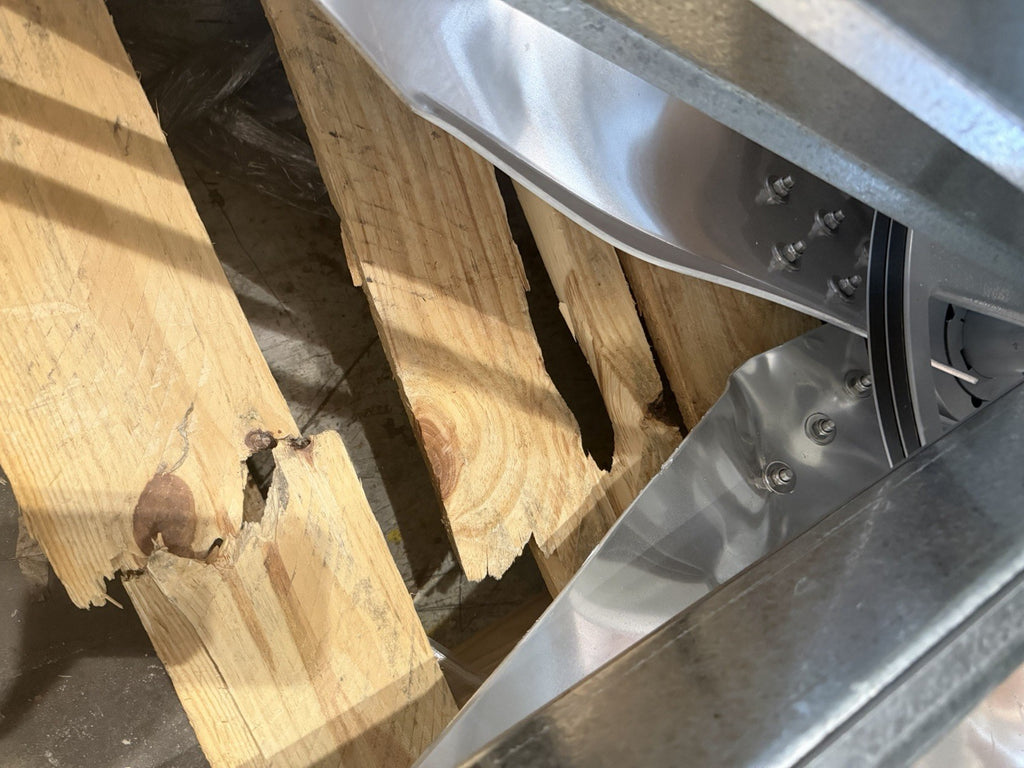

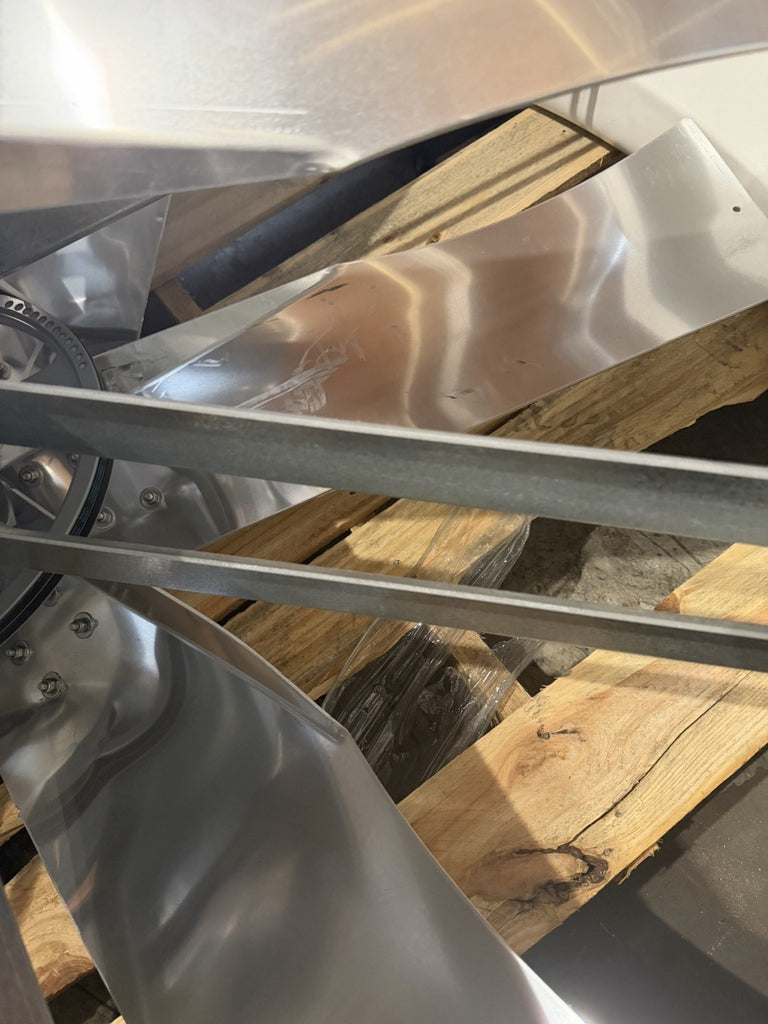

- BRAND NEW. NEVER USED OR INSTALLED. THIS LISTING IS FOR THE FAN ONLY. NO DEFLECTORS INCLUDED IN THIS LISTING. BLADES HAVE DAMAGE TO THEM, AS SHOWN IN PHOTOS. SOME ARE BENT. UNIT STILL FUNCTIONS. SATISFACTION GUARANTEED!!!!
- FREE SHIPPING
- MONEY BACK GUARANTEE!!!

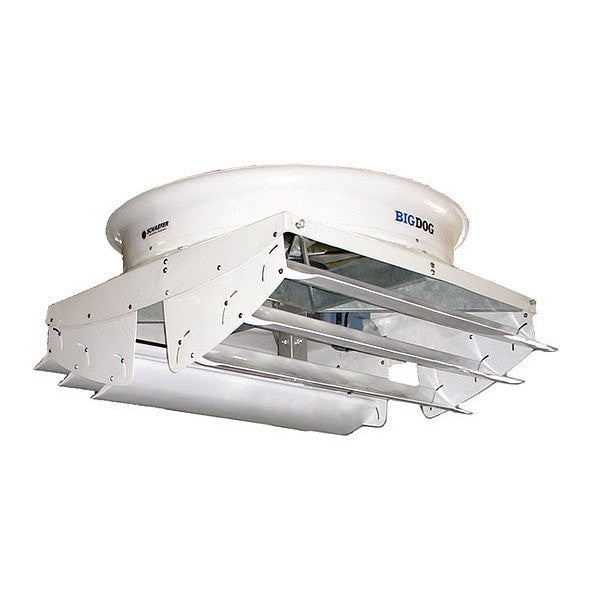

BD72-208460-3 72" BIGDOG Circulation Fan, Deflectors, 208 / 230 / 460V, 3-Phase by Schaefer
BIGDOG provides the cooling employees need in the summer to stay safe and more productive, while de-stratifying (pushing warm air down from the ceiling) in the winter to increase comfort and lower energy costs. The BIGDOG uses high volume, high speed airflow to move massive amounts of air. Cooling effect is due to the high velocity, compared to typical low speed ceiling fans. The BIGDOG is engineered to provide over 60,000 cfm of air movement and cool a 200 x 35 foot area.
Features and Benefits
- Extremely quiet operations, at even the highest speeds, allowing for easy conversation and more comfortable working conditions
- Fits conveniently in corridors and between sprinklers
- Specially designed cable, pole and wall mounts available for proper place placement to deliver maximum airflow
- Can be used with variable speed drive for smooth speed adjustment requiring as little as 300 watts of power, leading to best in class energy efficiency of 40 cfm/watt
- Single phase model available by special order
- Two year warranty
| Able to Ship Small Parcel | No |
| Blade Color | Metallic |
| Blade Material | Aluminum |
| CFM (free air) | 64500 |
| CFM Calculation Standard | ANSI/AMCA Standard 230-99 |
| CFM Range (Free Air) | >30000 |
| CFM/Watt (free Air) | 34.7 |
| Cord | Not included |
| Country of Origin | China |
| Diameter (inches) | 72 |
| Display Name | BD72-208460-3 |
| Drive Type | Belt |
| Fixed or Portable | Fixed |
| Frequency (Hz) | 60/50 |
| Housing Color | White |
| Housing Material | Fiberglass |
| Mount Type Recommended | BD Cable Kit 15 or BDMNTWALL or BDMNTPOLE |
| Nameplate Amps | 8.7 |
| Number of Wings | 6 |
| Opening Area (sq. ft.) | NA |
| Oscillating | No |
| Phase | 3 |
| Power (hp) | 3 |
| Product Color | White |
| Rough-in Dimensions | NA |
| Schaefer Performance Test No. | 478 |
| Speed Control Compatible | No |
| Speeds | Variable w Control |
| Switch | Not included |
| VFD Compatible | Yes |
| Voltage | 230/460 |
