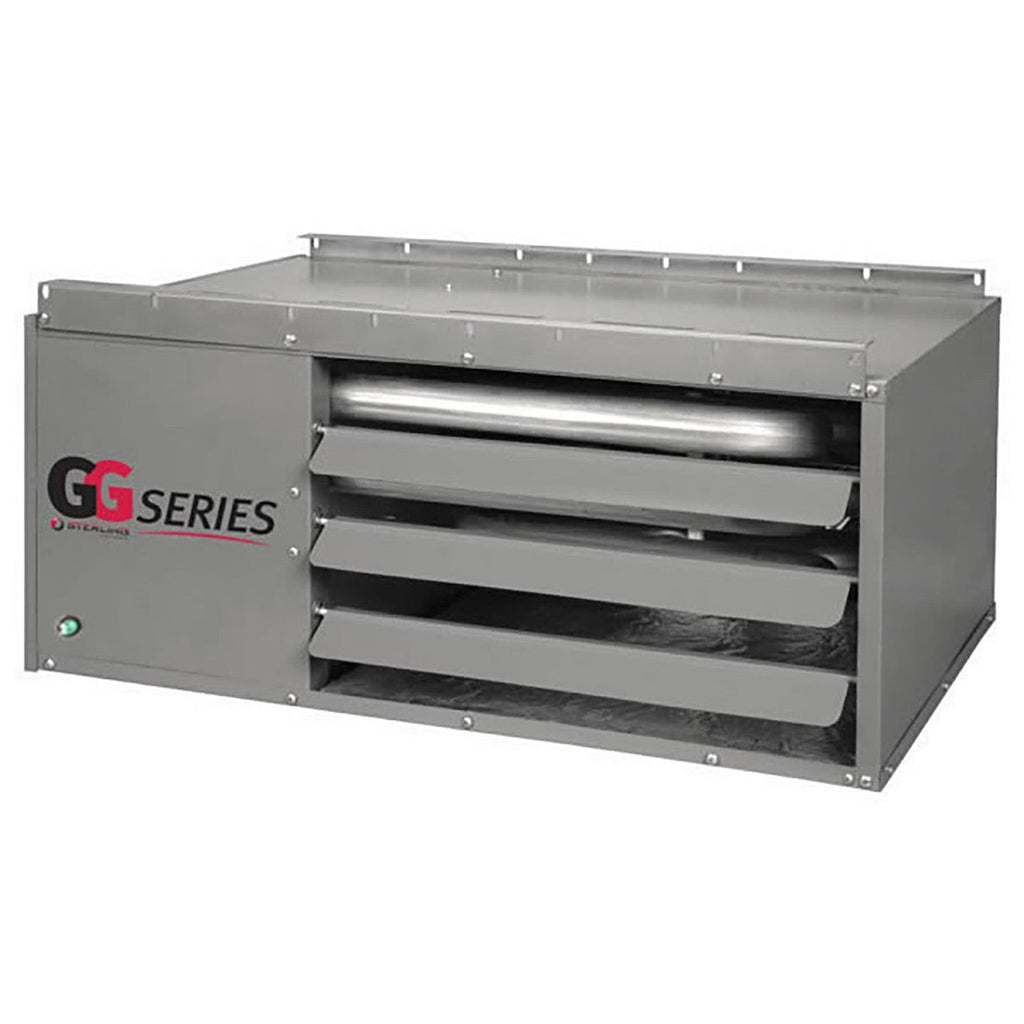

Sterling GG045N 45,000 BTU Low Profile Gas-Fired Unit Heater, 115V, 1 STAGE
- BRAND NEW
- FREE SHIPPING
- MONEY BACK GUARANTEE!!!
Specifications
-
Performance Data:
- Input - BTU/Hr (kW): 45,000 (13.2)
- Output - BTU/Hr (kW): 37,350 (10.9)
- Thermal Efficiency - %: 83
- Free Air Delivery - CFM (cu. m/s): 550 (.260)
- Air Temperature Rise - °F (°C): 60 (33)
- Full Load Amps at 120V: 3.2
-
Minimum Circuit Ampacity at 120V: 3.7
- Motor Data:
- Motor HP: 1/20
-
Motor (kW): (0.04)
-
Motor Type (Open Drip Proof): Shaded Pole
- RPM: 1650
- Motor Amps at 115V: 1.9
-
Dimensional Data - Inches (mm):
-
Jacket Height: 12-3/8 (314)
- Overall Height: 13-1/4 (337)
-
Overall Depth: 25-7/8 (632)
- Center Line Height of Flue*: 8-1/2 (216)
- Center Line Height of Air Intake: 8-1/2 (216)
-
Fan Diameter: 10 (254)
-
Discharge Opening Height: 10-13/16 (275)
- Vent Connection Diameter: 4 (102)
- Center Line of Flue Connection from Side: 7-1/4 (184)
- Center Line of Air Intake from Side: 2-3/4 (70)
- Vent Size Requirements - Standard Combustion:
- Category III Horizontal - Inches (mm): 4 (102)
- Category I & III Vertical - Inches (mm): 4 (102)
-
Vent Size Requirements - Separated Combustion:
- Exhaust Diameter** - Inches (mm): 4 (102)
- Intake Air Diameter - Inches (mm): 4 (102)
-
Unit Weight - Lbs (kgs): 65 (29)
- Shipping Weight - Lbs (kgs): 75 (34)
