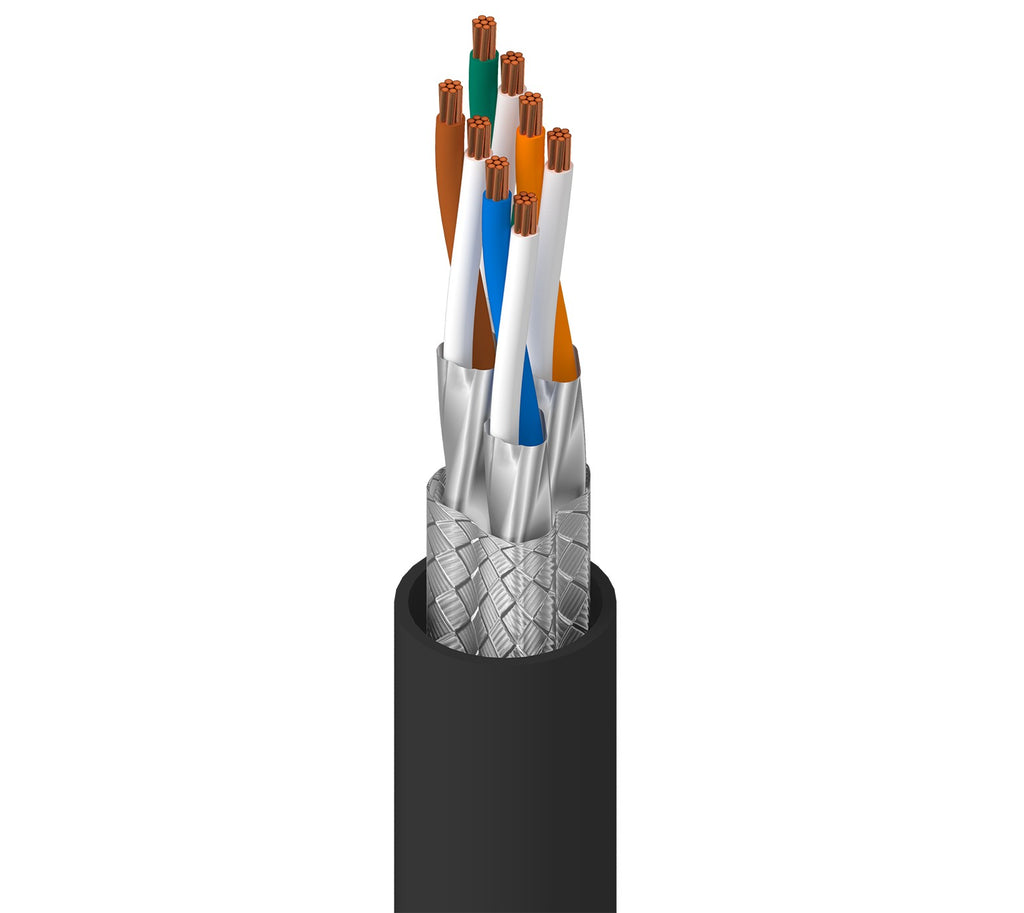

BELDEN DataTuff 7, 4PR #26 Str BC, PO ins, S/FTP, PUR HF jkt, AWM 21292, 1000FT

  • Sale
  • Regular price $1,799.99
Tax included. Shipping calculated at checkout.


BELDEN DataTuff 7, 4PR #26 Str BC, PO ins, S/FTP, PUR HF jkt, AWM 21292, 1000FT
  • BRAND NEW
  • FREE SHIPPING
  • MONEY BACK GUARANTEE!!!

Conductor

Size Stranding Material No. of Pairs
26 AWG 7x0.16 mm BC - Bare Copper 4

Insulation

Material Nom. Insulation Diameter Color Code
PE - Polyethylene (Foam) 1.05 mm (0.0413 in) White/Blue & Blue, White/Orange & Orange, White/Green & Green, White/Brown & Brown

Cable Core

Description
4 pairs twisted to cable core

Inner Shield

Element Shield Type Material
Individual Shielded Pair Tape Bi-Laminate (Alum+Poly)

Inner Shield Table Notes

Aluminum outside

Outer Shield

Shield Type Material Coverage
Braid Tinned Copper (TC) 65%

Outer Jacket

Material Nom. Diameter
PUR - Polyurethane (Halogen Free) 6.8 mm (0.27 in)

Outer Jacket1 Table Notes

Flame Retardant Sheath

Overall Cable Diameter (Nominal)

6.8 mm (0.27 in)
