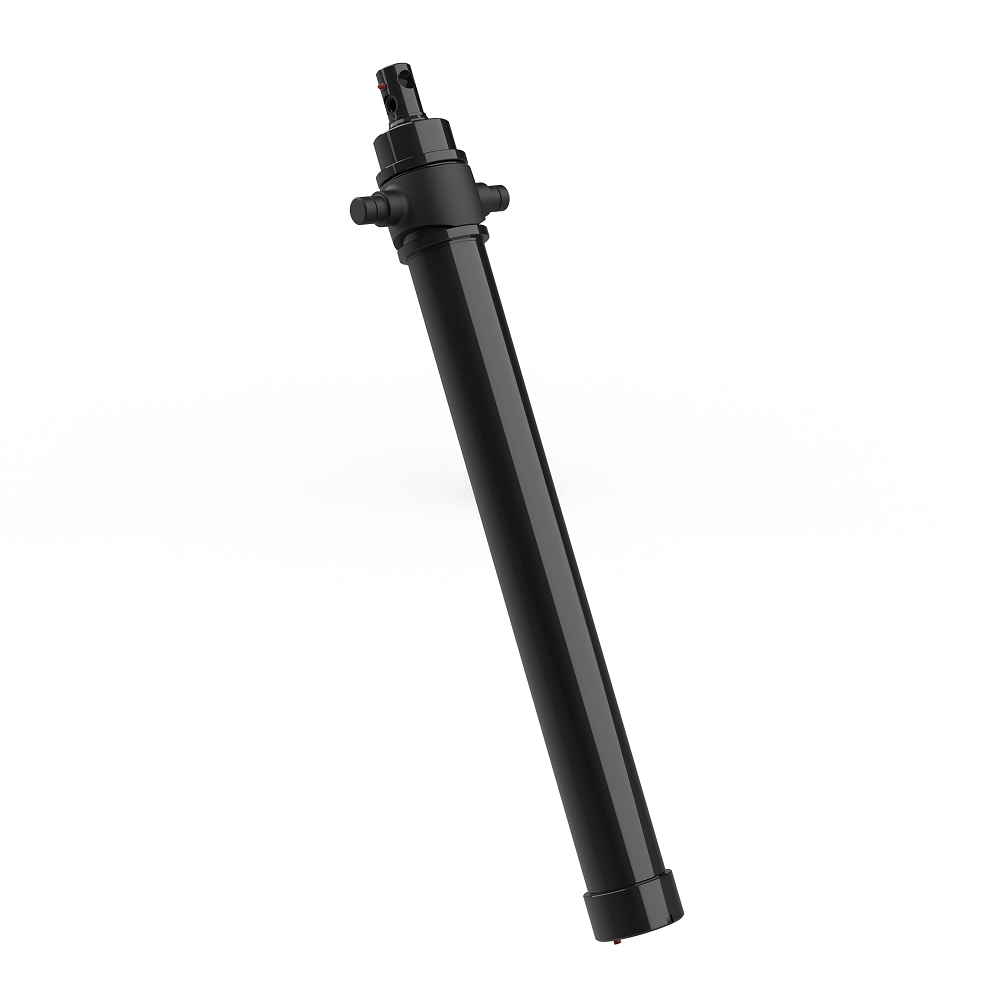

Eagle HTC-12043-ORB-00 Telescopic Hydraulic Cylinder *FREE SHIPPING*
- BRAND NEW!!! OLD STOCK
- FREE SHIPPING
- MONEY BACK GUARANTEE!!!
Specifications
PRESSURE
3000 PSI
Rod
2.000"
CAPACITY
7 Tons & 12 Tons
RETRACTED LENGTH
35.500" ~ 48.75"
EXTENDED LENGTH
78.000" ~ 120.000"
PIN (ROD HOLE)
1.000"
| 7 Tons Inverse | ||||
| PART No. | STROKE | PORT | WEIGHT [Lbs] | VOLUME [Gal.] |
| HTC-07833-ORB | 78” | SAE #8 (3/4-16 UNF) | 68 | 1.6 |
| HTC-09033-ORB | 90” | SAE #8 (3/4-16 UNF) | 75 | 1.8 |
| HTC-10833-ORB | 108” | SAE #8 (3/4-16 UNF) | 101 | 2.2 |
| 12 Tons Inverse | ||||
| PART No. | STROKE | PORT | WEIGHT [Lbs] | VOLUME [Gal.] |
| HTC-07843-ORB | 78” | SAE #8 (3/4-16 UNF) | 106 | 2.5 |
| HTC-09043-ORB | 90” | SAE #8 (3/4-16 UNF) | 107 | 2.8 |
| HTC-10843-ORB | 108” | SAE #8 (3/4-16 UNF) | 132 | 3.4 |
| HTC-12043-ORB | 120” | SAE #8 (3/4-16 UNF) | 143 | 3.8 |
| HTC-14443-ORB | 144” | SAE #8 (3/4-16 UNF) | 166 | 4.6 |
