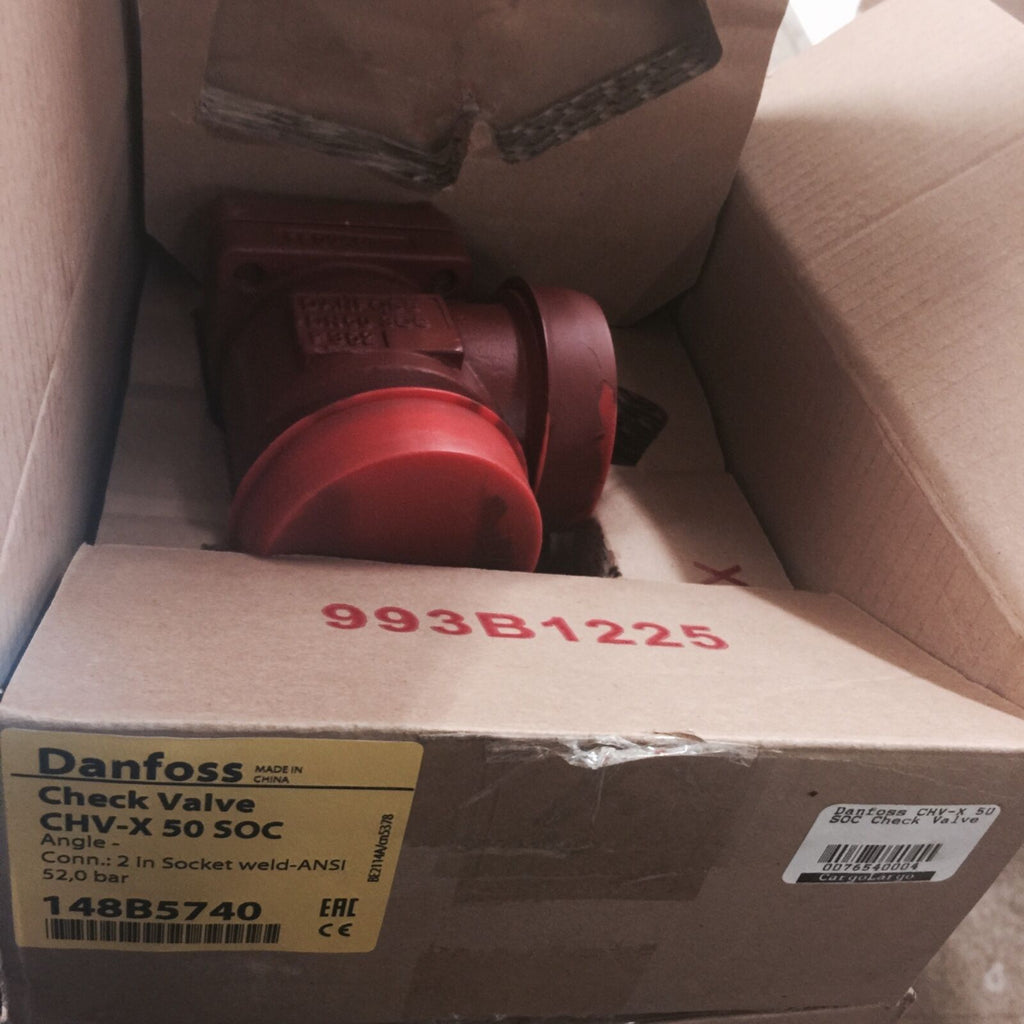

CHV-X 32 - CHV-X 50, Socket welding ANSI (B 16.11), angleway
148B5740
Refrigerants: Applicable to HCFC, HFC, R717 (Ammonia), R744 (CO2), Propane, Butane, Iso-Butane and Ethane.Temperature range: –60/+150°C (–76/+302°F).
Max. working pressure: 52 bar g (754 psi g). Visuals (8)
| Type Code | CHV-X 50 |
| Weight | 3.04 Kg |
| Approval | CE |
| Cat. | II |
| Colour paint | Reddish brown |
| Conn. size | 2 in |
| Conn. size | 50 mm |
| Conn. std. | ASME B 16.11 |
| Conn. type | Socket weld |
| Cv value | 52,200 gpm US |
| Direction | Angleway |
| EAN no. | 5702428477888 |
| Fluid Group | I |
| Kv value | 45,000 m3/h |
| MWP | 52,0 bar |
| MWP | 754 psig |
| Pack format | Single pack |
| Descript. | Check Valve |
| Prod. Group | Check valves |
| Prod. name | Check valve |
| Pack qty. | 1 pc |
| Refrigerant | HCFC/HFC |
| Refrigerant | R717 |
| Refrigerant | R744 |
| Temp. range | -60 - 150 °C |
| Temp. range | -76 - 302 °F |
