| Brand |
| Brand |
ABB / General Electric |
| Series |
SKLL |
| Amperage |
800A |
| Amperage Range |
320-800A |
| Voltage |
240VAC, 480VAC, 600VAC |
| Poles |
3 |
| Phase |
3 |
| AIC Rating |

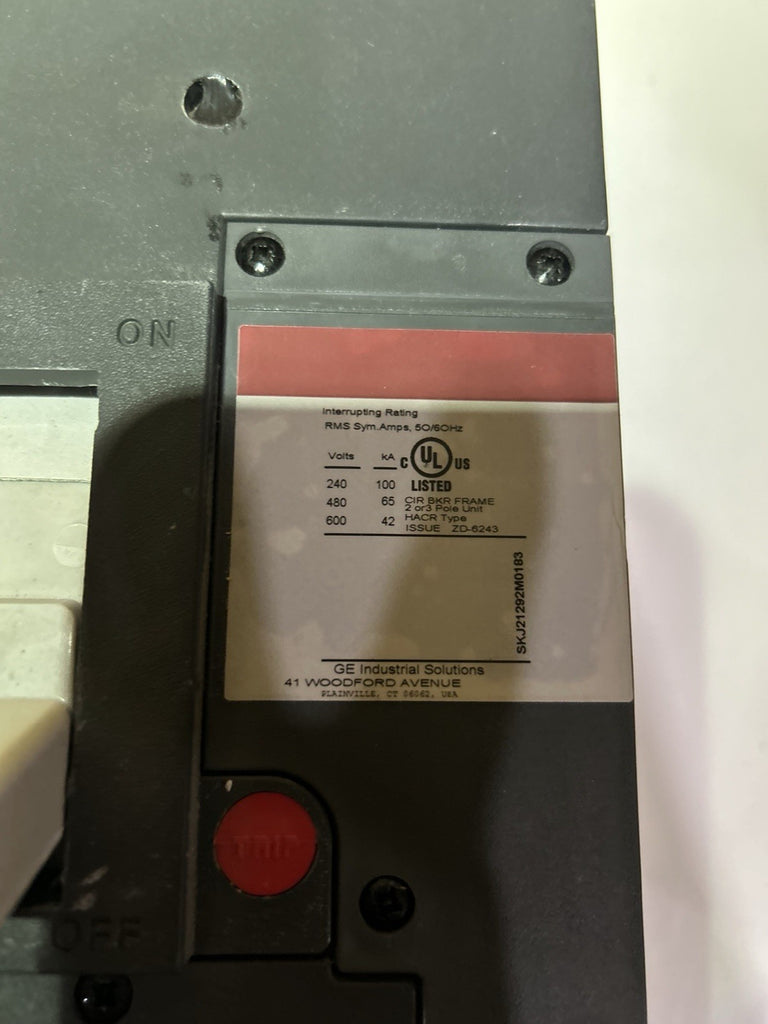

100kA @ 240VAC, 65kA @ 480VAC, 42kA @ 600VAC |
| Mounting Style |
Bolt-On |
| Terminal Type |

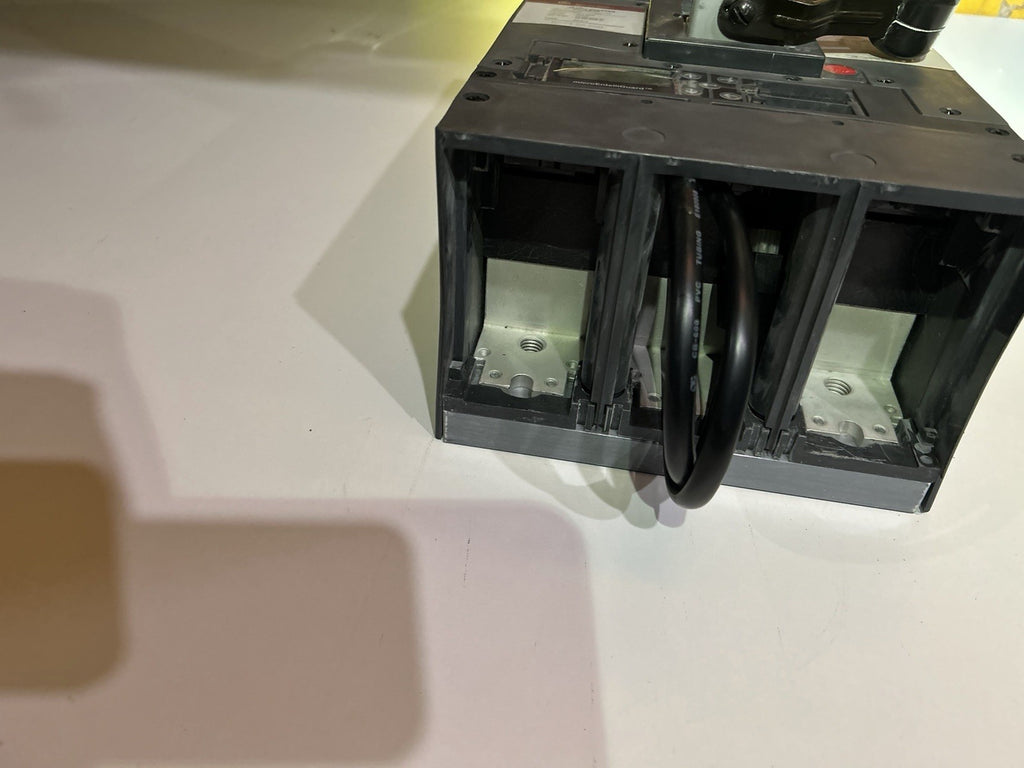

Lugs |
| For Use With |
Spectra Series Switchboards, Spectra Series Power Panelboards, Motor Control Centers |
| Trip Technology |
Electronic Trip |
| Trip Function Code |
LSIG |
| Trip Function |
Long-Time, Short-Time, Instantaneous, Ground Fault |
| Trip Adjustability |
Adjustable |
| Available Options |
Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Lug Kits, Communication Module |
| Accessories |

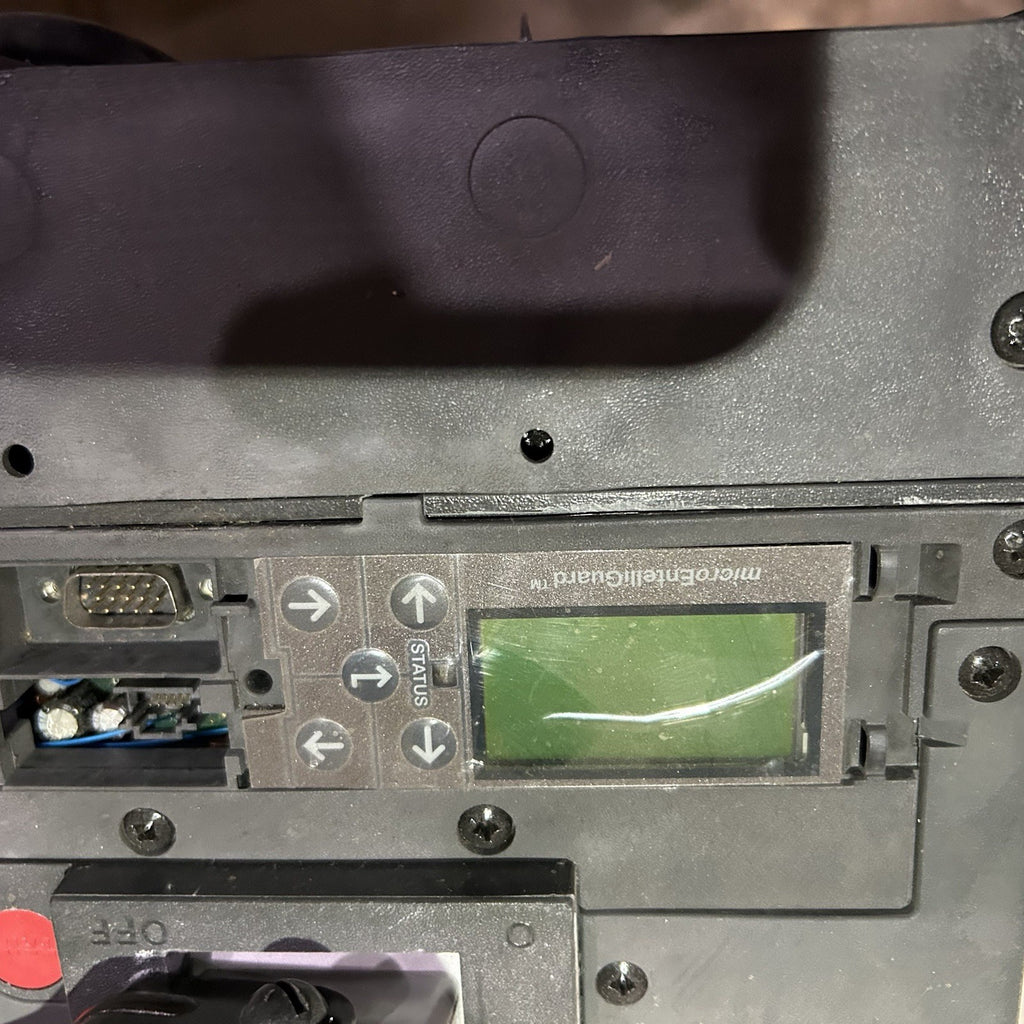

microEntelliGuard Trip Unit (LSIG) |
| Standards |
CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval |
CE, CSA, IEC, UL |
| Temp Rating |
-20C to 55C |
| Construction Features |
100% Rated, Current Limiting, Reverse Feed, True RMS Sensing, Interchangeable Trip Unit, Zone Selective Interlocking |
|
